LED Specs

We scour the globe, looking for the best value in LEDs.

The values listed are what our suppliers tell us. Although we do not have the equipment to validate the mcd rating, we are pretty good at determining if they are close.

Tri-Color
Color	Freq (NM)	size	Bright (mcd)	angle	spec
Red / Green / Blue	635 / 525 / 470	7.6mm square	700 / 1500 / 1000	±60°	pdf
Red / Green / Blue	635 / 525 / 470	5mm	700 / 1500 / 1000	±25°	NA

Bi-Color
Color	Freq (NM)	size	Bright (mcd)	angle	spec

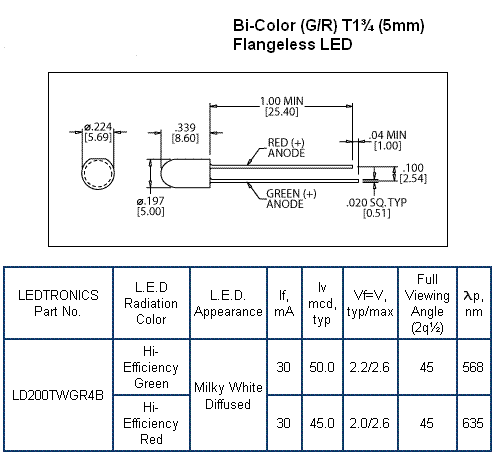

Standard Red / Green	568 / 635	5mm	50 / 50	±45°	Gif
Standard Red / Green	635 / 568	3mm	45 / 50	±55°	pdf
Standard Yellow / Green	585 / 568	3mm	30 / 35	±55°	pdf
Bright Red / Green	NA	3mm	4000 / 4500	NA	NA
Bright Red / Green	NA	5mm	4000 / 4500	NA	NA

Bright
Color	Freq (NM)	size	Bright (mcd)	angle	spec
Bright Blue #1	465~470	5mm	6000	±10°	MS Doc pdf
Bright Blue #2	460~466	5mm	2500	±55/20°	pdf
Bright Green	520~530	5mm	7000	±55/20°	pdf
Bright Green	520~530	3mm	8000	±20°	NA (Hebeiltd #320LG2C)
Bright Orange	615~620	5mm	5000	±10°	MS Doc pdf
Bright Yellow	585~595	5mm	5000	±10°	MS Doc pdf
Bright Yellow	590	3mm	3000	±30°	MS Doc pdf
Bright Red	640~645	5mm	8000	±10°	MS Doc pdf
Bright Red	640	3mm	2300	±50°	gif
Bright White	NA	5mm	8000	±17°	pdf
Bright White	NA	3mm	3500	±17°	NA

Basic
Color	Freq (NM)	size	Bright (mcd)	angle	spec
Standard Red	?	3mm	~50?	?	NA
Standerd Green	?	3mm	~50?	?	NA
Standard Yellow	?	3mm	~50?	?	NA
Standard Red	?	5mm	~50?	?	NA
Standard Green	?	5mm	~50?	?	NA
Standard Yellow	?	5mm	~50?	?	NA
We pick up a large number of our basic LEDs in bulk. They have no specification and we don't even know who makes them. They are entry level LEDs, and our guess is they are around 50 mcd.
