Tix Clock

This blinkie tells the time. This is based off a clock design that Ward likes...

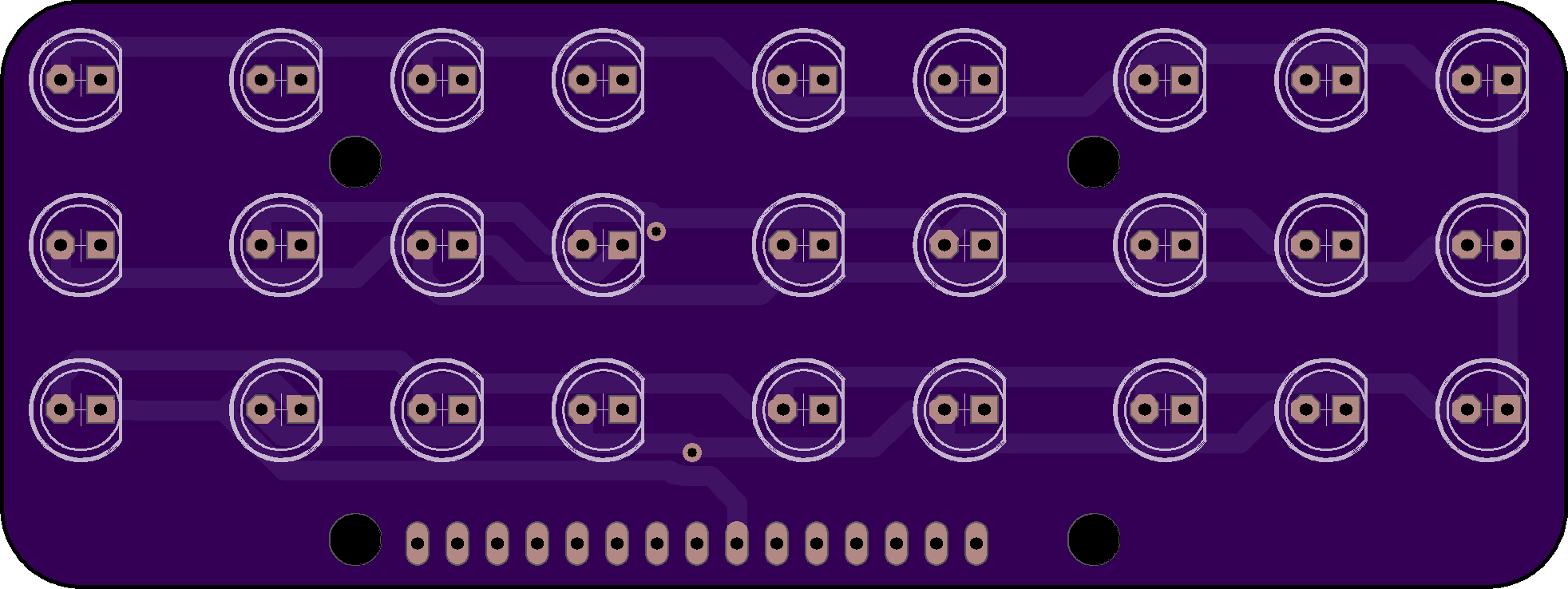

The clock face is a PCB board with 3 groups of LEDs for 27 LEDs. This type of PCB is called a "Hat" (“Hardware attached on top”) a CPU module has all the brains and drives the LEDs. This is the current place holder for the web server

TixClock

• 27 LEDs LEDs.
• EPS32 WROOM processor module
  • 1 button
  • 4MB flash
  • Dual core 240MHz
  • USB connector power (can communicate to PC)
  • WiFi to connect to the internet
  • WiFi hotspot, so we you access and config it.
• Yes, the TixClock has a web server built in!
• DFU (Downloadable Firmware Update)
• command line interface

Resources

• Assembly Instructions
